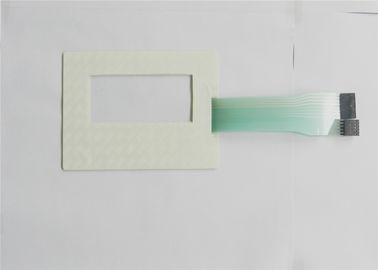

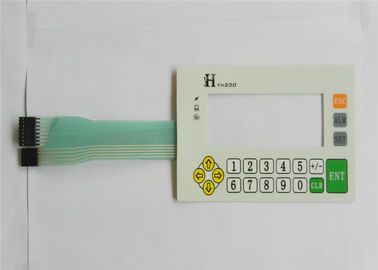

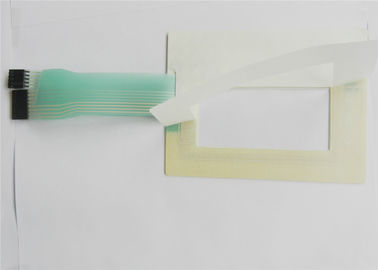

Custom Push Button Metal Dome PCB Membrane Switch , SMT / SMD Tactile Switch

Custom Push Button Metal Dome PCB Membrane Switch , SMT / SMD Tactile Switch
Custom Push Button Metal Dome PCB Membrane Switch , SMT / SMD Tactile Switch

বড় ইমেজ :  Custom Push Button Metal Dome PCB Membrane Switch , SMT / SMD Tactile Switch

পণ্যের বিবরণ:
Place of Origin: Shenzhen
পরিচিতিমুলক নাম: BEZ
সাক্ষ্যদান: ISO9001
Model Number: 390-9-1
Circuit: 0.125 PET or 0.125 flexible PCB keyboard
প্রদান:
Minimum Order Quantity: 100 pcs
মূল্য: negotiation
Packaging Details: 50 pcs each poly bag and 2000 pcs in carbon box
Delivery Time: 7-10 days
Payment Terms: T T WestUnion
Supply Ability: 1000000 pcs each day
বিস্তারিত পণ্যের বর্ণনা
লক্ষণীয় করা:

single membrane switch

,

custom membrane switch



Custom Push Button Metal Dome PCB Membrane Switch , SMT / SMD Tactile Switch





Quick Detail:





> Button : embossed

> Led color : red

> Pitch : 2.54 mm

> Push force : 280 g





Description:



> Surface :Matte glossy

> Overlay button: embossed 0.35 mm

> Metal dome size : Φ 8 mm metal dome

> Window : no

> Led window : no color coated translucent





 Applications:



>  For domestic appliance , remote control ,electronic lock , washing machine , microwave oven ,electric cooker ,sound installation and so on

> For OS office system , such as telephone set ,fax machine, copy cat ,counter and so on





Specifications



1. Electrical



Maximum Circuit Rating: 35V(DC),100mA,1W

35V DC,100mA,1W



Contact Resistance: 10Ω~ 500Ω (Varies from the trace length and material)

10Ω~500Ω



Insulation Resistance: 100MΩ 100V

100MΩ at 100V DC



Dielectric: 250 Vrms (50~60Hz 1min)

250V Rms(50-60Hz 1min)



Contact Bounce: < 5ms

5ms or less



Life:   Flat: ≥ 5million times



           Tactile: ≥ 1 million times

            Duraswitch: ≥ 10million times

Flat type 60g~300g(2~10OZ)



Tactile type 150g~400g(6~14OZ)





2. Mechanical

Flat type 0.1~0.5mm



Tactile type 0.6~1.5mm



Actuation Force: Flat: 57~284g(2~10oz)

                             Tactile: 170~397g(6~14oz)

Flat type Five million closures or more Tactile type one million closures or more




Switch Height:  Flat: 0.1~0.5mm



                            Tactile: 0.6~1.5mm

-40°c~+80°c
