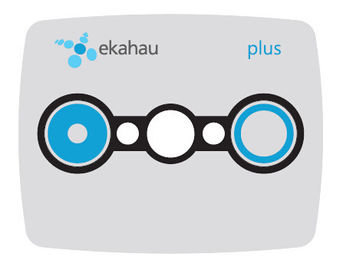

Matrix Abrasion Membrane Switch Overlay 3M467 / 3M468 Adhesive For GPS Ipad

Matrix Abrasion Membrane Switch Overlay 3M467 / 3M468 Adhesive For GPS Ipad
Matrix Abrasion Membrane Switch Overlay 3M467 / 3M468 Adhesive For GPS Ipad

বড় ইমেজ :  Matrix Abrasion Membrane Switch Overlay 3M467 / 3M468 Adhesive For GPS Ipad

পণ্যের বিবরণ:
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: TKM MS
সাক্ষ্যদান: ISO9001:2008, SGS,Rohs
Model Number: TKM—MS--403
প্রদান:
Minimum Order Quantity: 100pcs
মূল্য: negotiation
Packaging Details: Polybag per pcs,50per cartoon
Delivery Time: 15-20days
Payment Terms: T/T , Western Union
Supply Ability: 100000Pieces per month
বিস্তারিত পণ্যের বর্ণনা
লক্ষণীয় করা:

membrane switch overlay

,

membrane overlay

Matrix Abrasion Membrane Switch Overlay 3M467 / 3M468 Adhesive For GPS Ipad



Quick Detail:



1.Contact resistance: <1Ω /cm

2.Insulation resistance: <100MΩ (250V DC)

3.Operating voltage: ≤ 50VDC

4.Working current: 25- 100mA,0-30V DC

5.Reliability, service life:<1 million times

6.Operating temperature: -40 ℃ ~ +70 ℃

7.Operating humidity:when40°C,<98%RH

8.Spring time: ≤ 5ms

9.Substrate voltage: 2000V DC

10.Tail flexibility:any angle within 180 degree

11.Switch travel:Flat Type 0.05-0.3mm tactile type:0.3-1.5mm

12.Connector with housing.





Descriptions:


Graphic Overlay Panels
1) Custom made OEM/ODM
2) Precise silk screen printing overlay add touch screen panel
3) Rich colors
4) High sensity & High quality
5) Environment Friendly
6) Perfect exterior
6) Raw Materials: PET film overlay+ touch panel





Applications:


Our products are widely used in :

Communication, industrial control, household appliances, GPS, children’s kid-learning, electronic reading

machine, various game machines, Instruments and Apparatuses, attendance machine,

Electronic scale, medical equipment, electronic tools equipment, automatic sewing machine,

Embroidery Machine, Machine Maintenance equipment, computer keyboard and electronic calculators etc.

Remote control, control board for home appliances,medical equipment ,auto,computer and cell phone,etc.





Competitive Advantage:


Hard wear,
corrosion resistance,
high transmittance,
control feel smooth,
high reliability




Specifications


Lens Color

Black/White

Input force

<10g

Surface hardness

>6H

Interface Type

IIC

IC Type IC

FT5406

Number of touchpoint

5,10

Sensor thickness ITO

0.55mm

TP size

7inch

View Area

190.02*133.47mm

Active Area(W*L)

193.02*136.47mm

Outline

Drawings subject to confirmation

Coverlens thickness

0.7mm
